Polygraph Instruments

ABOUT THIS ITEM

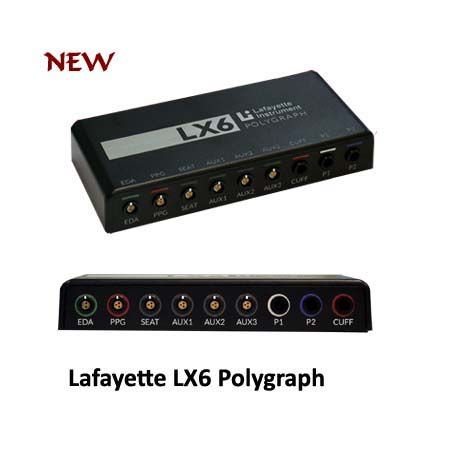

Lafayette Instrument is excited to announce our next generation polygraph instrument, the LX6.

LX6 Features

• Brand: Lafayette
• Model:Polygraph Instruments
• Superior Fischer Connectors® brand connections*
• Electronic sensors cannot be incorrectly connected
• Recessed pneumatic ports
• Durable and easy to grip molded cables
• Rugged molded and textured enclosure
• Improved port layout and labeling
• Enclosure weighted and designed for added stability
• 32 Bit data resolution
• Additional AUX port (10-Channels)
• Standard HID USB driver (no FTDI driver required)
• Best in industry electronics and EDA
• Compatible with current LXSoftware and future Lafayette polygraph software
• Package includes same accessories as current systems

* Connections from Fischer Connectors feature a quick release mechanism and are rated for twice the mating cycles of connectors used by other manufacturers.

LX6 System Includes

• LX6 Polygraph Data Acquisition System
• LXSoftware Bundle with OSS and APL's Polyscore Scoring Algorithm
• Activity Sensor
• Pneumo Chest Assembly, Silver
• Pneumo Chest Assembly, Blue
• Repositionable/Disposable with 2 Reusable Snap EDA Electrodes
• Exclusive to the LX6, new Blood Pressure Cuff and Pump Bulb
• Targus Backpack

SPECIFICATIONS

• Requires LXSoftware 11.7.1+
• Size: 8.1" x 3.22" x 1.21" (20.6 x 8.2 x 3 cm)
• Isolation: 5000Vrms isolation on all channels
• Enclosure material: ABS
• Power: USB connection
• Data Transfer Rate: 360 samples/second across all channels
• Resolution: 32-bit analog to digital conversion
• Temperature: •Operating: 32° to 125° F (0° to 52° C)
• Storage: -44° to 150° F (-40° to 66° C)
• Relative Humidity: 20% to 80% Non-condensating
• Meets ASTM standards
• Enclosure UL 94V-0 rated
• CE certified/meets EMC directive

WARRANTY

• LX6 exclusive 5-year instrument warranty

DISCLAIMER

• Colour: Due to monitor settings and monitor pixel definition, we cannot guarantee the color that you see will be exactly the actual colour of the product.
• Measurement: Measurements indicated may not be exact as they are taken manually.
• User Interface Appearance: As the firmware is continuously updated, the user interface will be updated accordingly. The images are for reference only, and everything is subject to the actual product.

PACKING LIST

• 1* Complete Set Lafayette Polygraph

SHIPPING POLICY

1. The U.S. Department of Commerce requires an export license for any Polygraph System shipment with an ULTIMATE destination other than: Albania, Australia, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, France, Germany, Greece, Hungary, Iceland, India, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Turkey, or United Kingdom. It is against U.S. Law to ship a Polygraph System to any other country without an Export License. If the ULTIMATE destination is not one of the above listed countries, contact Lafayette Instrument for the required license application forms.
